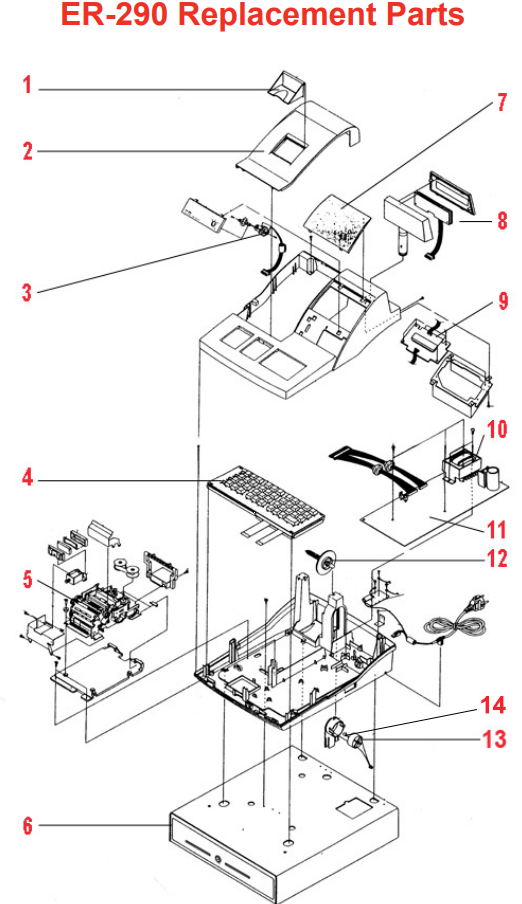

ER-290 Replacement Parts
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 102021 | WINDOW-JOURNAL, ER-290 | ||
| 3 | 300537 | SAMSUNG CONTROL LOCK | ||
| 5 | 501035 | PRINTER ASSY ER-290 M-405 | ||
| 6 | 160257 | Drawer Model 57 ECR Ivory 24V - for ECR's | ||
| 12 | 102008 | SPOOL ER-290,350,380,550 | ||
| 13 | 401138 | MOTOR TAKE-UP 100/150/240/290 | ||
| 14 | 100779 | DETAIL RUBBER-TAKE UP ROLL 200 | ||
| Not Illus. | 360859 | OVERLAY ER-290/350/550/380 | ||
This diagram applies to the following products:
