Parts_BTP_M280
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 132148 | CASE, MIDDLE BLACK BTP-M280 | ||
| 2 | 132156 | CASE, MIDDLE BAFFLE BLK M280 | ||
| 3 | 501475 | LABEL KEYPAD BTP-M280 | ||
| 4 | 501474 | BOARD FEED & LED BTP-M280 | ||
| 5 | 132154 | CASE, BOTTOM BLACK BTP-M280 | ||
| 6 | 132146 | COVER, FRONT BLACK BTP-M280 | ||
| 7 | 132158 | COVER, TOP BLACK BTP-M280 | ||
| 8 | 132181 | COVER, TOP BLACK BTP-M280A | ||
| 9 | 132182 | COVER, REAR BACK BTP-M280A | ||
| 10 | 417066 | PRINT HEAD BTP-M280 TPG | ||
| 11 | 417024 | HP BUSHING BTP-M280B | ||
| 12 | 417027 | PRINTING STEP MOTOR BTP-M280B | ||
| 13 | 417036 | TIMING BELT BTP-M280 | ||
| 14 | 417029 | BELT TENSIONER BTP-M280B | ||
| 15 | 417021 | HP SENSOR BTP-M280B | ||
| 16 | 417035 | PRINTING GEAR 1 M280 | ||
| 17 | 417014 | GEAR, RIBBON DRIVE BTP-M280B | ||
| 18 | 417034 | PRINTING GEAR 3 M280 | ||
| 19 | 417028 | BELT INITIATIVE GEAR BTP-M280 | ||
| 20 | 417033 | PRINTING TRANS GEAR M280 | ||
| 21 | 501472 | CUTTER ASSY BTP-M280 | ||
| 22 | 417032 | PAPER FEED GEAR BTP-M280 | ||
| 25 | 417022 | PLATEN ROLLER BTP-M280B | ||
| 26 | 417023 | ROLLER BUSHING BTP-M280B | ||
| 28 | 417026 | PAPER FEED STEP MOTOR M280B | ||
| 30 | 417019 | PAPER END SENSOR BTP-M280B | ||
| 31 | 417025 | PAPER GUIDE BTP-M280B | ||
| 32 | 417018 | BACK COVER MICRO SWITCH M280 | ||
| 33 | 417140 | Cable Print Head BTP-M280/M300 for Serial No ranges 1303 thru 1806 ONLY | ||
| 34 | 501473 | Logic Brd BTP-M280 w/USB Port | ||
| 35 | 417017 | FRONT COVER MICRO SWITCH M280B | ||
| 36 | 132150 | Power Supply BTP2002/M280/R880 | ||
| 37 | 132172 | OPENING BUTTON BLACK BTP-M280 | ||
| 38 | 501468 | Switch Power Blk BTP-R580/M280 | ||
| 39 | 250014 | CORD POWER UL 6' | ||
| 40 | 417060 | HEAD CARRIAGE N/S-BTP-M280 | ||
| 41 | 417044 | TAKE-UP SPOOL PAPER HOLDER BTP | ||
| 42 | 132166 | SPANNER FOR BTP-M280 | ||
| 43 | 417152 | Eccentric Bushing M280/M300 | ||
| 132163 | RUBBER FOOT BTP-M280 | |||
| 132166 | SPANNER FOR BTP-M280 | |||
| 132176 | SPRING FOR OPEN BUTTON, BTP-M280 | |||
| 132178 | GUIDE RIBBON, DIRECTION, BTP-M280 | |||

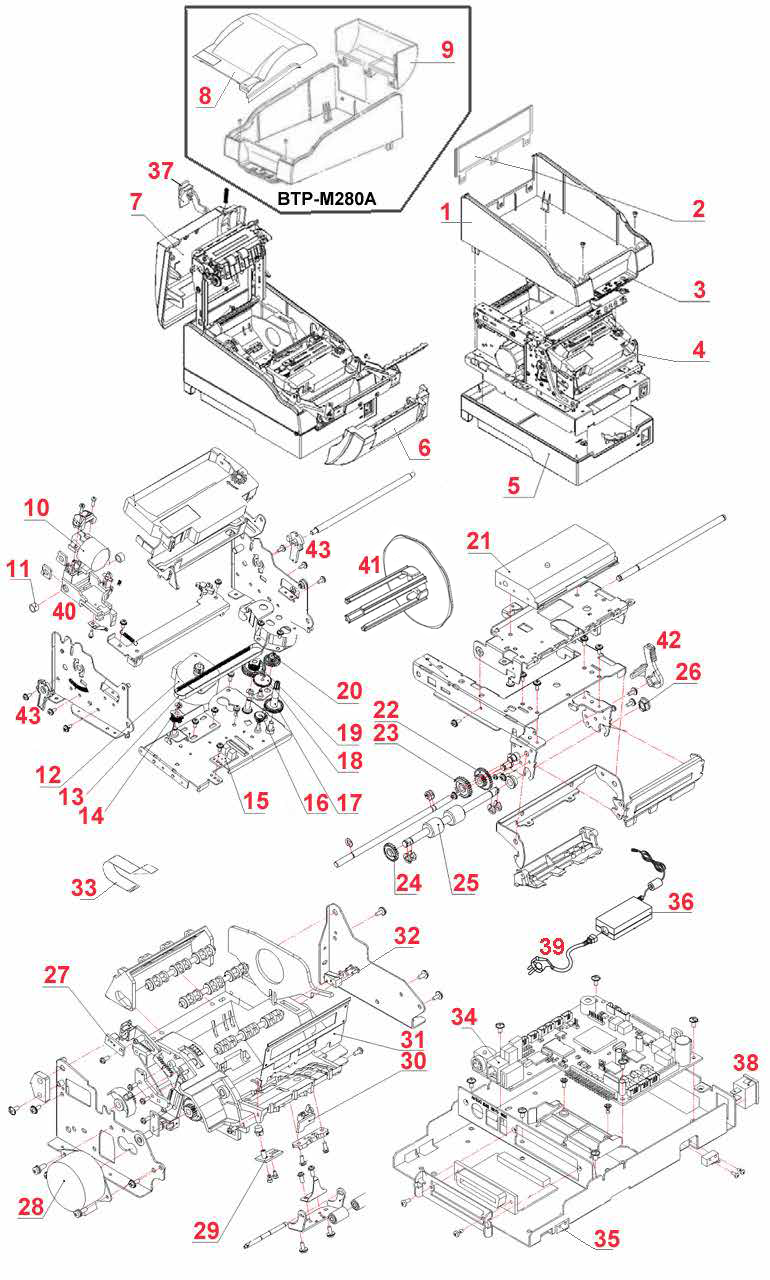

This diagram applies to the following products:
- BTP-M280B IVORY SERIAL (132012)
- BTP-M280B IVORY ETHERNET (132012-E)
- BTP-M280B IVORY PARALLEL (132013)
- PRINTER, BTP-M280 (132014)
- BTP-M280B BLACK ETHERNET(BTP-M280B-ETH) (132014-E)
- BTP-M280B Black Serial** LM Mode ** (132014-SHOW-LM)
- BTP-M280B BLACK PARALLEL (132015)
- BTP-M280A IVORY SERIAL** Limited Availability ** (132020)
- BTP-M280A IVORY ETHERNET (132020-E)
- BTP-M280A IVORY PARALLEL (132021)
- SNBC Printer BTP-M280A BLACK SERIAL - with Auto Cutter and Take-up (132022)
- BTP-M280A BLACK ETHERNET (132022-E)
- SNBC Printer BTP-M280A BLACK PARALLEL - with Auto Cutter and Take-up (132023)
- BTP-M280D IVORY SERIAL (132024)
- BTP-M280D IVORY ETHERNET (132024-E)
- BTP-M280D IVORY PARALLEL (132025)
- BTP-M280D BLACK SERIAL (132026)
- BTP-M280D BLACK ETHERNET (132026-E)
- BTP-M280D BLACK PARALLEL (132027)
- BTP-M280B BLACK USB (132028)
- BTP-M280A BLACK USB ONLY (132029)
- BTP-M280D BLACK USB ONLY (132030)
