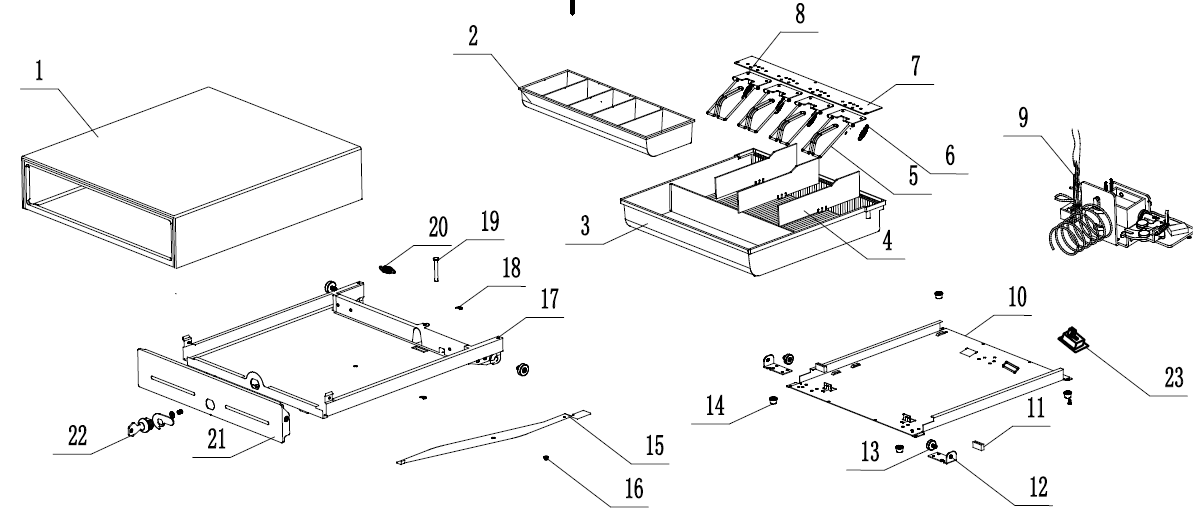

Parts_CD_Model_14
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 3 | 100961 | Insert Tray for Model 14 | ||
| 9 | 100964 | Complete Latch Assembly, Model 14/16 | ||
| 6 | 100966 | Spring, Bill Weight, Model 13,14,18 | ||
| 5 | 100967 | Bill Weight, Model 13,14,18 | ||
| 2 | 100969 | Coin Tray, Removable, Model 14 | ||
| 4 | 100972 | Bill Divider, Model 14 | ||
| 22 | 100976 | Lock, HS-505, Model 13/14 | ||
| 100977 | Keys (2), Model 13/14 | |||
| 100978 | Cable, RJ12/6p6c, Model 14/16/18 | |||
| 100983 | Locking Lid, Model 14 | |||
| 100980 | Under Counter Bracket Model 14/16 | |||
This diagram applies to the following products:
