Parts_CD_Model_18
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| A1 | 100960 | Insert Tray for Model 18 | ||
| D1 | 100963 | Complete Latch Assembly, Model 18 | ||
| A4 | 100966 | Spring, Bill Weight, Model 13,14,18 | ||
| A5 | 100967 | Bill Weight, Model 13,14,18 | ||
| A7 | 100968 | Coin Tray, Removable, Model 18 | ||
| A8 | 100971 | Bill Divider, Model 18 | ||
| B6 | 100974 | Lock, Model 18 | ||
| B7 | 100975 | Keys (2), Model 18 | ||
| 100978 | Cable, RJ12/6p6c, Model 14/16/18 | |||
| 100982 | Locking Lid, Model 18 | |||
| 100979 | Under Counter Brackets Model 18 (set of 2) | |||

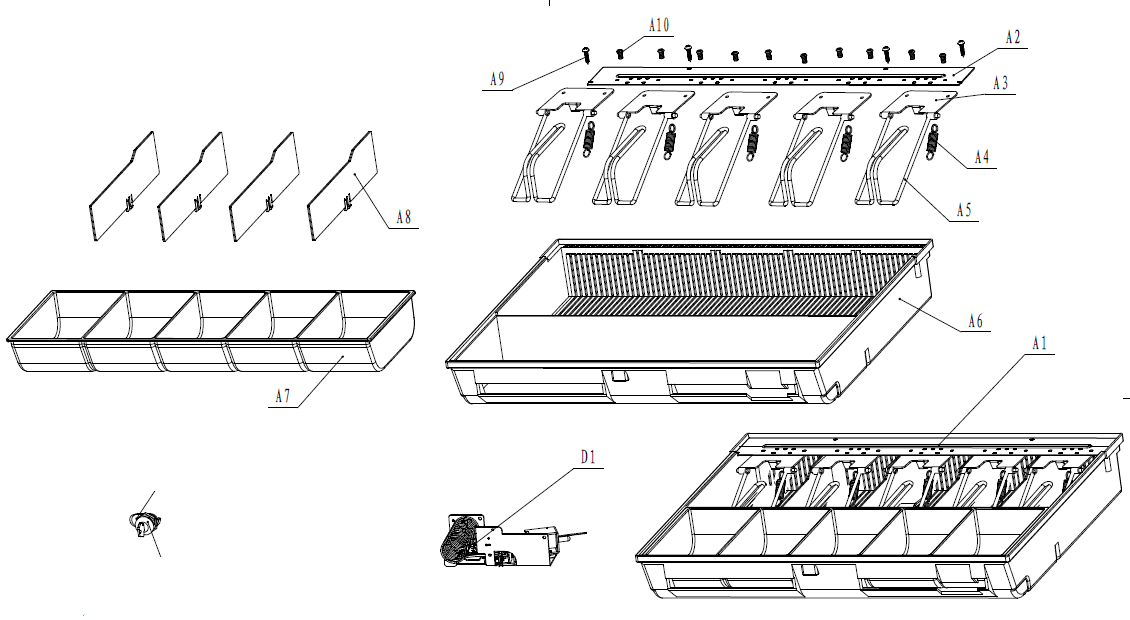

This diagram applies to the following products:
