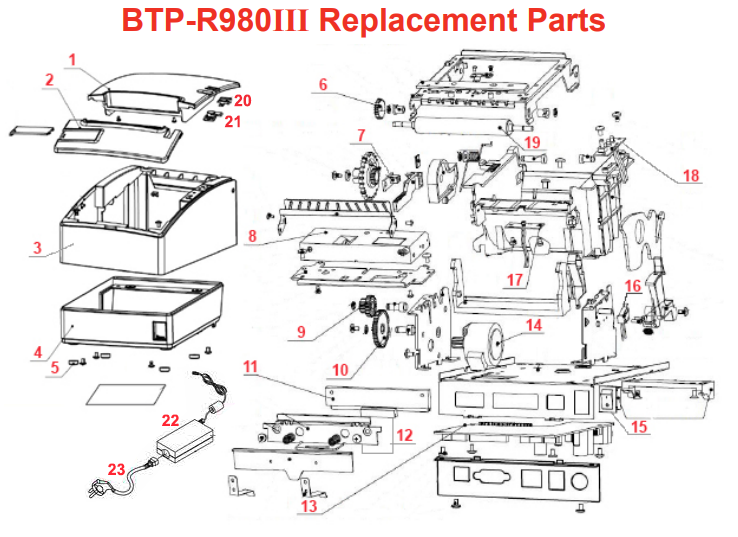

Parts_BTP-R980iii
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 132657 | Cover, Upper BTP-R980III | ||
| 2 | 132658 | Cover, Cutter BTP-R980III | ||
| 3 | 132659 | Cover, Middle BTP-R980III | ||
| 4 | 132660 | Cover, Bottom BTP-R980III | ||
| 5 | 417117 | Rubber Foot - BTP-R880NPV | ||
| 6 | 417056 | GEAR, PLATEN ROLLER | ||
| 7 | 417072 | Sensor, Horz Ppr Near end | ||
| 8 | 417109 | CUTTER ASSY | ||
| 9 | 132442 | GEAR, PRINTER 27-18 | ||
| 10 | 132536 | Gear, Transmission | ||
| 11 | 417090 | Print Head | ||
| 12 | 501444 | Cable, TPH | ||
| 13 | 417107 | BOARD, MAIN CNTRL | ||
| 14 | 417106 | MOTOR, STEP | ||
| 15 | 132467 | POWER SWITCH | ||
| 16 | 417071 | Microswitch, End Cvr | ||
| 17 | 417105 | SENSOR, PAPER MOD | ||
| 18 | 417108 | BOARD, FEED BUTTON | ||
| 19 | 132480 | PLATEN ROLLER | ||
| 501444 | Cable, TPH BTP-2002/R180/R980III | |||
| 20 | 132661 | Light Bar, BPT-R980III | ||
| 21 | 132662 | Feed Button, BTP-R980III | ||
| 22 | 132150 | Power Supply SNBC POS Printer | ||
| 23 | 250014 | CORD POWER UL 6' Straight | ||
| 132215 | SERIAL CABLE, DB9F to DB9M | |||
This diagram applies to the following products:
- BTP-R980III USB+Ser/Ethernet (132086-SHOW)
- SNBC Printer BTP-R980III Black USB+Parallel (132095)
- SNBC Printer BTP-R980III Black USB+Serial (132096)
- SNBC Printer BTP-R980III Black USB Only (132097)
- SNBC BTP-R980III Thermal Receipt Printer Series (USB/Serial/Ethernet) (132086-Parent)
- SNBC Printer BTP-R980III USB+Serial+Ethernet (132086)
