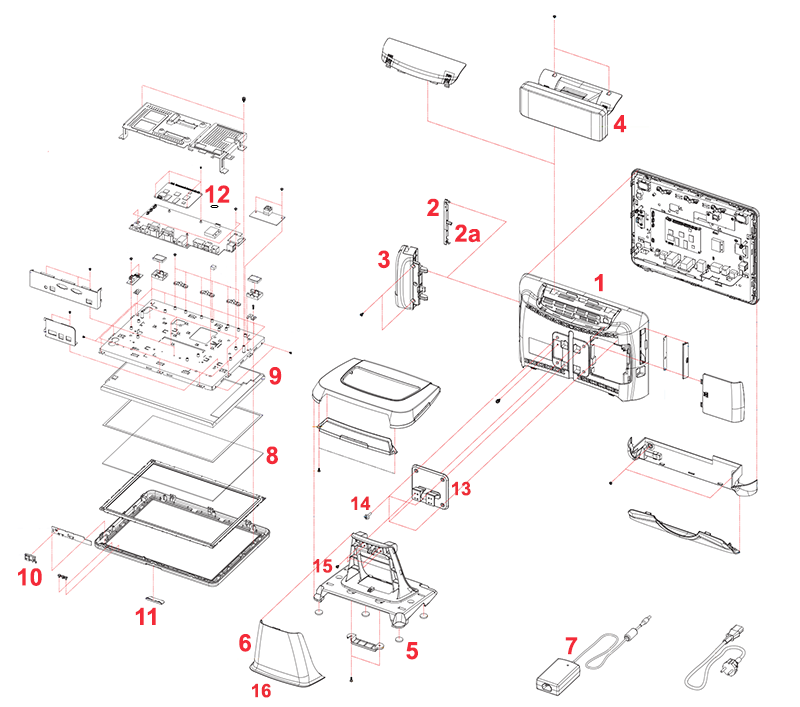

Parts_SAP-4800II
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 503246 | Cover, Rear Top SAP-4800 | ||
| 2 | 503165 | Cover, White MSR SPT-48xx | ||
| 2A | 503166 | Cover, Black MSR SAP/SPT-48xx | ||
| 3 | 503163 | MCR Black SPT-4845/SAP-48xx | ||
| 4 | 503172 | Rear Display VFD for SPT-48xx/SAP-4800 | ||
| 5 | 503266 | FOOT, RUBBER FOR SPT TERMINALS | ||
| 6 | 503183 | Cover, Stand SPT-4xxx No Logo | ||
| 7 | 503055 | POWER SUPPLY SPT-4500/SAP-4800 | ||
| 8 | 503028 | TOUCH PANEL SPT-3K/4500/SAP-48 | ||
| 9 | 503145 | LCD Panel AUO | ||
| 10 | 503243 | Cover, Power Button SPT-48/T-1 Bezel Terminal | ||
| 11 | 503261-SAM4S | LOGO, FRONT SAM4S | ||
| 12 | 203070 | BATTERY 3V LITHUM CR2032 | ||
| 13 | 503185 | Base Holder Hinge SAP/SPTSPT-4500/4700/4845/4740/SAP | ||
| 14 | 600914 | Screw (1) SPT-4500/4700 Base | ||
| 15 | 503186 | Screw for Hinge SAP/SPT** For use with 503185 ** | ||
| 16 | 503183 | Cover, Stand SPT-4xxx No Logo | ||
| 503223 | Board, I/O SAP-4800II | |||
| 503222 | Main Board SAP-4800II | |||
This diagram applies to the following products:
