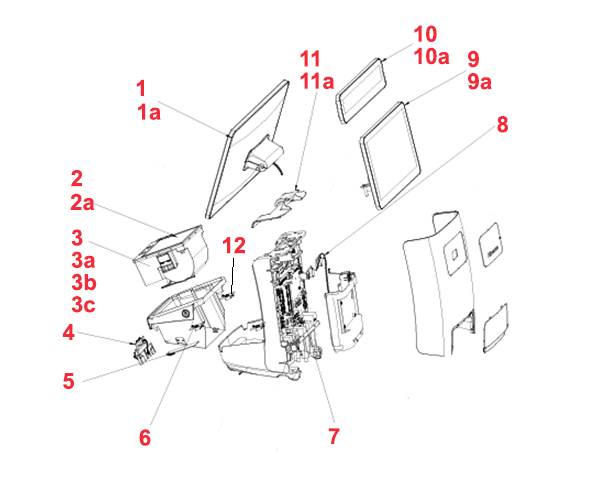

Parts_HK716
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 720521 | LCD Assy Black - HK716 ** Complete with Housing ** | ||
| 2 | 720506 | Cover, Printer Black HK71x | ||
| 2a | 720505 | Cover, Printer White HK71x | ||
| 3 | 720363 | Printer, HK71x 58mm Black ** Special Order ** | ||
| 3a | 720363-WHITE | Printer, HK71x 58mm White ** Special Order ** | ||
| 3b | 720364 | Printer, HK71x 80mm Black | ||
| 3c | 720364-WHITE | Printer, HK71x 80mm White | ||
| 4 | 720515 | MSR Head HK716 | ||
| 5 | 720517 | Board, RFID Controller HK716 | ||
| 6 | 720480 | Module, Switch Button HK718 | ||
| 7 | 720507 | Logic Board HK716 w/o CMOS Battery | ||
| 8 | 720478 | Speaker, HK718 | ||
| 9 | 720365 | Rear LCD 10in HK716 - Black | ||
| 9a | 720365-WHITE | Rear LCD 10in HK716 - White | ||
| 10 | 720367 | Rear VFD - HK71X - Black | ||
| 10a | 720367-WHITE | Rear VFD - HK71X - White | ||
| 11 | 720488 | Cover, Top for VFD Black HK718 | ||
| 11a | 720487 | Cover, Top for VFD White HK718 | ||
| 12 | 720502 | Board, USB I/O HK570 | ||
| Not Illus. | 503142 | Power Cord, 90 degree | ||
| Not Illus. | 720473 | Power Supply HK718 | ||
