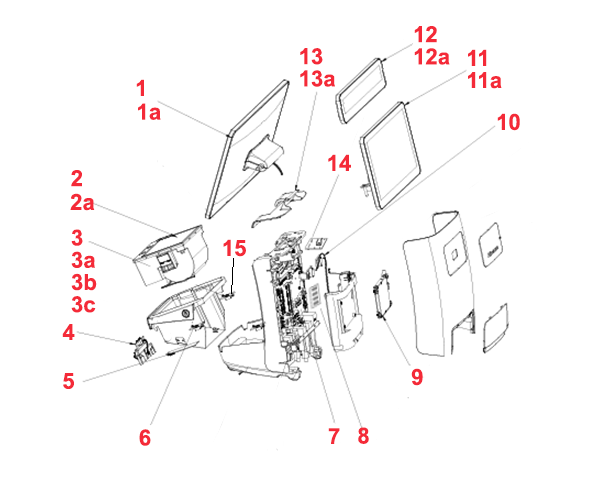

Parts_HK718_NCC_Embedded
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 720490 | LCD Assy Black - HK718 ** Complete LCD+Tch Assy ** | ||
| 1a | 720489 | LCD Assy White - HK718 ** Complete LCD+Tch Assy ** | ||
| 2 | 720506 | Cover, Printer Black HK71x | ||
| 2a | 720505 | Cover, Printer White HK71x | ||
| 3 | 720363 | Printer, HK71x 58mm Black ** Special Order ** | ||
| 3a | 720363-WHITE | Printer, HK71x 58mm White ** Special Order ** | ||
| 3b | 720364 | Printer, HK71x 80mm Black | ||
| 3c | 720364-WHITE | Printer, HK71x 80mm White | ||
| 4 | 720482 | MSR Module Assy HK718 | ||
| 5 | 720504 | Module, RFID HK718 | ||
| 6 | 720480 | Module, Switch Button HK718 | ||
| 7 | 720472 | Logic Board HK718 | ||
| 8 | 705072 | Addtional Memory SODIMM DDR3 4GB RAM | ||
| 9 | 703113-SSD | NCC Ref Emb POS SW HK718 | ||
| 10 | 720478 | Speaker, HK718 | ||
| 11 | 720366 | Rear LCD 10in HK718 - White | ||
| 11a | 720366-WHITE | Rear LCD 10in HK718 - White | ||
| 12 | 720367 | Rear VFD - HK71X - Black | ||
| 12a | 720367-WHITE | Rear VFD - HK71X - White | ||
| 13 | 720488 | Cover, Top for VFD Black HK718 | ||
| 13a | 720487 | Cover, Top for VFD White HK718 | ||
| 14 | 720496 | Board, I/F 2nd Screen(H) HK718 - Host Side | ||
| 15 | 720502 | Board, USB I/O HK570 | ||
| 503142 | Power Cord, 90 degree | |||
| Not Illus. | 720473 | Power Supply HK718 | ||
