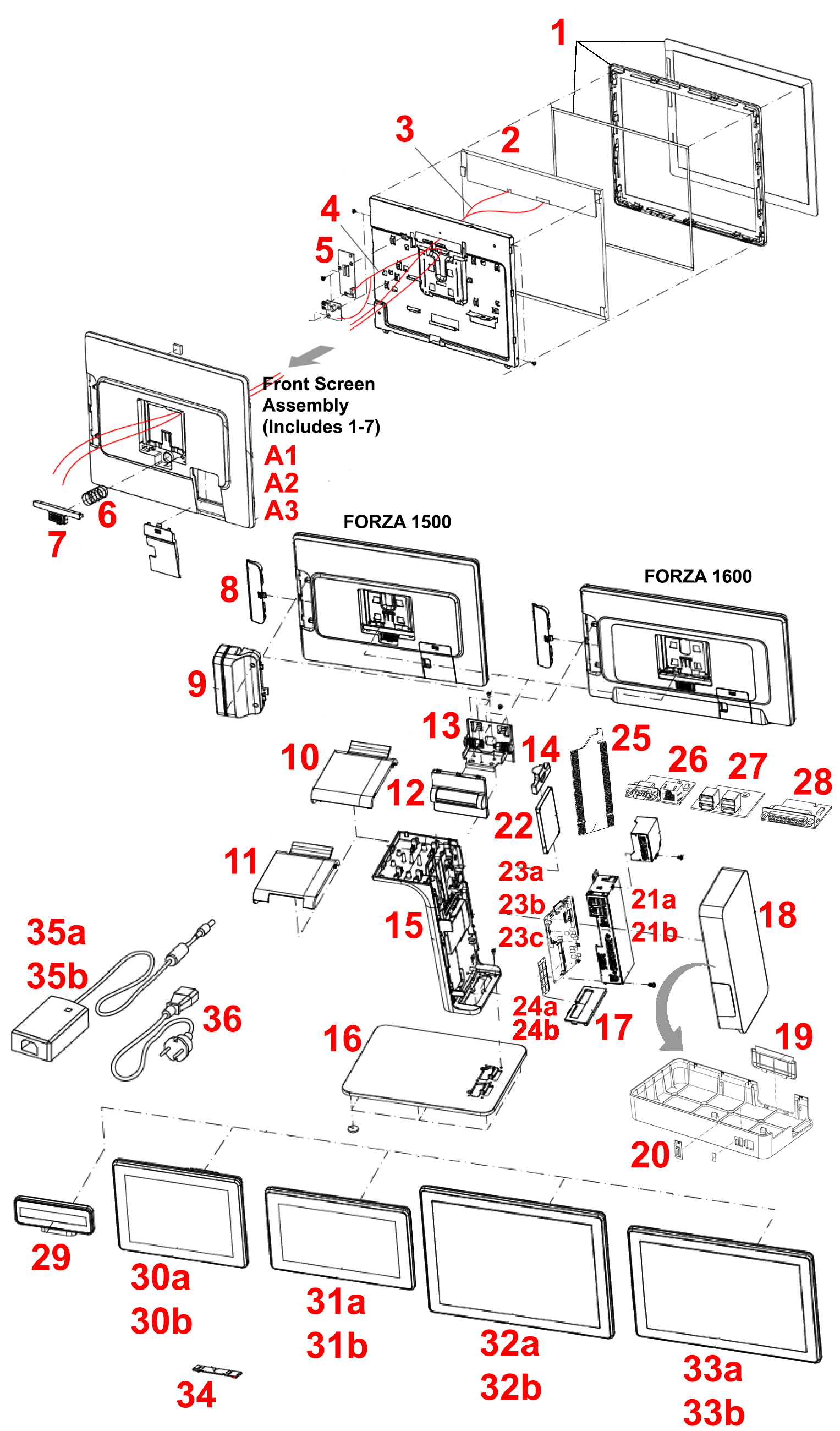

Blowout Diagrams

Parts_FORZA-1500-1600-1850

Ref. No.	CRS Item No.	Description
1	503309	Front Display 15in Forza 15x0
2	503145	LCD Panel AUO Titan-150/550/4845/4740/7540/SAP4800/160/560
3	503315	Harness LVDS+Backlit Forza 15x0
4	503316	Harness PCT+MSR Forza 15x0
5	503310	Brd, PCT Controller Forza
6	503321	Lever Spring Forza
7	503322	Hinge Lever Forza
A1	503342	Forza 15 Front Display
A2	503341	Forza 15.6" Front Display
A3	503340	Forza 18.5" Front Display
8	503323	Cover, Dummy MSR Forza 15x0
9	503330	MSR, Trk 1,2,3 Blk Forza
10	503326	Cover, Top Stand (Std) Forza
11	503327	Cover, Top Stand (Dual) Forza
12	503324	Cover, Hinge Forza
13	503317	Hinge, Tilt Forza
14	503320	Holder SSD Forza
15	503318	Stand, Body Forza Black
16	503319	Bottom Plate Black Forza
17	503325	Cover, Stand Bottom Forza
18	503328	Cover, I/O Forza
19	503329	Cover, Dummy I/O Forza
20	503314	Button, Power Forza
21a	503312	Module, I/O Forza 15x0 1510 1610 1810
21b	503313	Module, I/O 1x30 1x50 (1530 1630 1830 1550 1650 1850)
22	703083	2.5 SSD Sata III 128gb
23a	503304	Logic Board Forza 1x10 J1900
23b	503305	Logic Brd Forza 1x30 i3 7100U
23c	503306	Logic Brd Forza 1x50 i5 7200U
24a	705072	Addtional Memory SODIMM DDR3 4GB RAM
25	503307	Board, Bridge - Forza
26	503332	Board, Option Serialx2-Forza
27	503331	Board, Option Ext USBx4-Forza
28	503333	Board, Option Parallel - Forza
29	732100	Rear 2 x 20 LCD Forza
30a	732101	Rear LCD 9.7 Forza Non-Touch
30b	732102	Rear LCD 9.7 Forza w/Touch
31a	732103	Rear LCD 10.1 Forza Non-Touch
31b	732104	Rear LCD 10.1 Forza w/Touch
32a	732105	Rear LCD 15 FORZA Non-Touch
32b	732106	Rear LCD 15 Forza w/Touch
33a	732107	Rear LCD 15.6 Forza Non-Touch
33b	732108	Rear LCD 15.6 Forza w/Touch
34	503311	Board, OSB Forza 15x0
35a	503112	Power Supply 60w SPT-47/150/3KSPT-4700/40/4845/3K/T-150
35b	503082	Power Supply 75w SPT-4700/403K/4700/40/4845/150 W/rear LCD
36	250014	CORD POWER UL 6' Straight
Replacement Battery	203070	BATTERY 3V LITHUM CR2032
