Product information

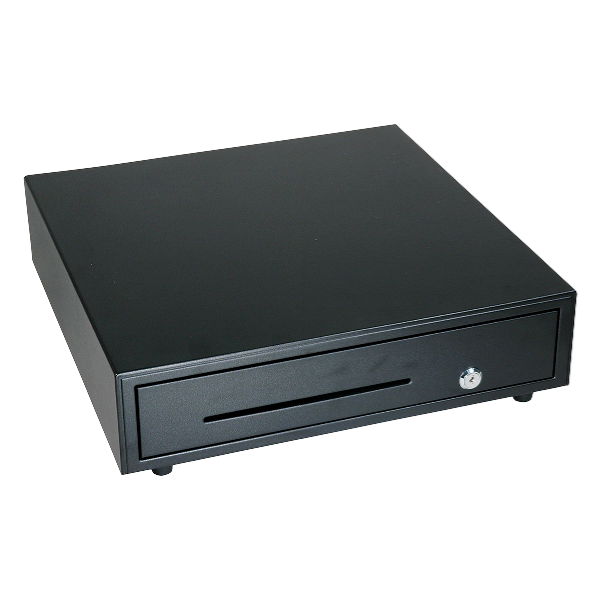

POS Cash Drawer
Card slips and other media can be inserted through the media slot without opening the cash drawer. Use the optional locking insert cover to transfer cash and media when employees begin and end their work shifts. Easily mount under the counter with optional brackets.
• Full Size Features in a Compact Drawer
• Media Slot Leads to a Hidden Storage Area Under the Insert Tray
• Removable Coin Tray
• Adjustable Hardened Steel Wire Bill Weights
• Detachable Cable / RJ12 Connector
• Metal Housing
• Durable Powder Coat Finish
• Heavy Duty 2-Stage Latch
Specifications
| Cabinet Color: | Black Powder Coat Finish |
| Bill / CoingCompartments: | 5 Bill / 5 Coin |
| 3-Position / 4-Function Drawer Lock: | Electronic Release, Manual Release, Lock-Close, Lock-Open |
| Beveled Media Slots: | 7-3/8" Long |
| Drawer Compulsion: | Yes |
| Cable / Connector: | 80" Cable / RJ12 Connector |
| Printer Interface Pin-Out Assign.: | SAM4s Ellix / SNBC / Bixolon / Epson / Citizen and POS Terminals |
| Solenoid Voltage: | 24V DC |
| Metal Thickness: | Casing: 0.8mm, Metal Tray: 0.8mm, Bottom Plate: 1.0mm |
| Dimensions - Drawer: Insert: Shipping Carton: |
16-1/2"W x 4-1/2"H x 16-3/8"D 15-5/8"W x 2-1/4"H x 12-3/4"D : 19"W x 6-1/4"H x 9-1/4"D |
| Shipping Weight: | 19 lbs. |
