BTP-M300, USB w/Bluetooth

Series Impact Receipt Printer

Item #: 132081-USB-BT

BTP M300  USB w/Bluetooth
  • BTP M300  USB w/Bluetooth
  • BTP M300  USB w/Bluetooth
  • BTP M300  USB w/Bluetooth
  • BTP M300  USB w/Bluetooth
  • BTP M300  USB w/Bluetooth
  • BTP M300  USB w/Bluetooth
  • BTP M300  USB w/Bluetooth

Product information

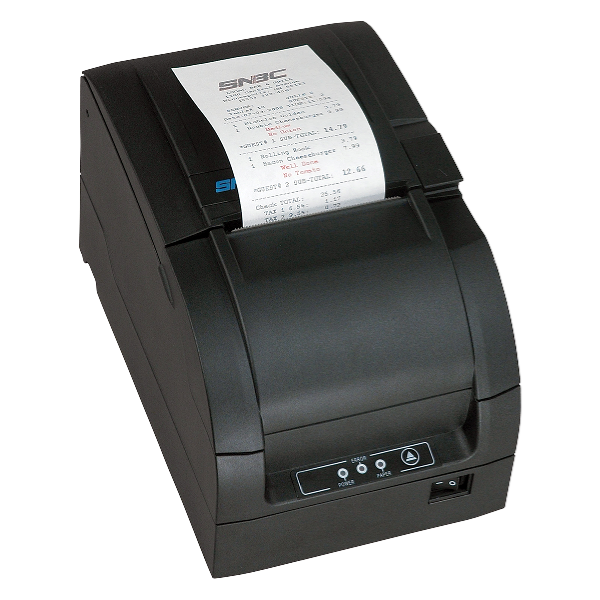

Preferred for POS, Bar, Kitchen, and Data-Logging Printer Applications The SNBC BTP-M300 produces clear, precise and archivequality documents. It is ideal for requisitions and receipts including coupons, rebates and special offers. Featuring trouble free drop-and-print paper loading, the extraordinarily reliable M300 provides paper “pull” technology for jam-free operation and best-in-class cutter performance. The internal power supply eliminates unsightly and messy cords and bricks.



• USB Interface On-Board
• Choice of Serial, Parallel, USB Only, Ethernet, Bluetooth and WiFi Interface Options
• Cutter Rated for 1,800,000 Cuts (BTP-M300)
• Energy Star Certified
• SDK Available for iOS and Android Operating Systems



Product Brochure

Specifications

Max Print Speed: 4.7 Lines per Second / 19.6mm per Second
Printing Method: Impact

Characters Per Line - Font A:
                                          Font B:

33 / 35
40 / 42
Characters Size - Font A:
                                  Font B:
9 x 9
7 x 9
Paper Roll Type - Width:
Maximum Diameter:
Paper Thickness:
2-Ply Paper Thickness:
80 / 76 / 69.5 / 57.5mm ± 0.5mm
83mm
0.06mm ~ 0.085mm
0.05mm ~ 0.08mm Total <_ 0.14mm
Auto Paper Cutting Method: Auto-Cutter with Selectable Full or Partial Cut
Inking Supply: ERC-38 Ribbon Catridge (Black/Red)
Reliability - MTBF:
                     MCBF:
      Printhead Life:
             Cutter Life:
180,000 Hours
18,000,000 Lines
150,000,000 Characters
1,800,000 Cuts (BTP-M300)
Character Set - Alphanumeric:
International:
Graphic:
95
37
128 x 12 Page / Traditional/Simplified Chinese / Thai / Japanese
Interpreter: ESC/POS
Interface - Board 1:
                    Board 2 :
USB+Cash Drawer or Ethernet+Cash Drawer
Serial / Parallel / USB / Bluetooth / WiFi / Ethernet

Drivers -                             32 bit:
                                32 and 64 bit:
                                             Other:
       Software Development Kit:

POSReady 2009 / 2000 Server / 2000 Prof. / XP Home
: Win 8 / Win 7 / Server 2008 / Server 2003 / XP Prof. / Vista
Linux / OPOS / BYJavaPOS Windows / BYJavaPOS Linux
iOS / Android

Drawer Port: Up to 2 Drawers (+24VDC) / Supports Drawer Compulsion
Data Buffer - Rec. Buffer RAM:
RAM Bitmap:
Flash Bitmap:
8 KB RAM
8 KB
128 KB
Power Supply: 24V DC ± 5% Internal Adapter Included
Current/Power Usage: 1.5A / 36W
Operating Temperature: 40° ~ 114°F (5° ~ 45°C)
Operating Humidity: 20% ~ 90% RH (Non-Condensing)
Dimensions: 6-1/4"W x 6"H x 9-1/2"D
Shipping Weight: 9.0 lbs. (Each Unit) / 40 lbs. (Master Carton 4)
Safety and EMI: FCC / RoHS
Windows Drivers: 32 and 64 bit Windows Drivers - Win 10 Compatible
Windows 8.1 Drivers: 32 and 64 bit Windows 8.1 Driver
Printer Utility:   Printer Utility
