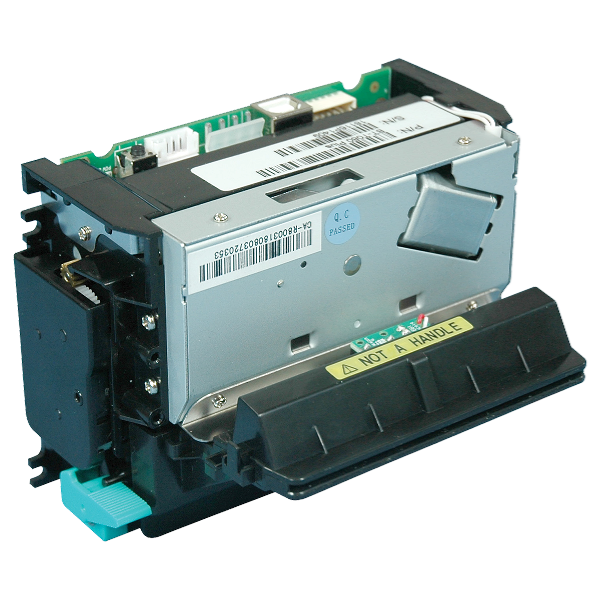

SNBC Kiosk Printer BT-T080Plus USB+Serial with Anti-Jam

StockDeliveryText - fa-circle

Stock - 2

StockDeliveryUnit - green

StockText - In Stock

SNBC Kiosk Printer BT-T080Plus USB+Serial with Anti-Jam

Cost Effective Embedded Thermal Printer Mechanism

Item #: 132354

SNBC Kiosk Printer BT T080Plus USB Serial with Anti Jam
  • SNBC Kiosk Printer BT T080Plus USB Serial with Anti Jam

Product information

•Kit Includes Printer, Auto Cutter, External Feed Button and LED, Appropriate Signal Cable

• Flexible Design Ensures Easy Integration

• Up to 150mm per Second Printing

• Line of Dot Methodology Ensures Quiet Operation

• Supports Straight or Curved Paper Path

• Large Paper Roll – Up to 254mm Diameter

• Semi-Automatic Paper Loading

• Select Full Cut, Partial Cut or Tear Off

• Supports Marked Paper and Continuous Paper

• Popular Support Components Available

Click Here to Have a Representative Follow-up with you!

Specifications

Print Method: Direct Thermal Line Printing
Resolution: 203 DPI
Print Width: 3-1/8" (80mm) Maximum
Max. Print Speed: 5-7/8" (150mm) per Second Maximum
Memory - Flash: 4KB
Memory - SDRAM: 2KB
Interface: USB+Serial

Bar Code -
                                             1D:


                                             2D:


UPC-A / UPC-E / EAN8 / EAN13 / CODABAR / ITF / Code 39 / Code 128 / Code 93

QR (Maximum 38mm)

Fonts-                               Font A:
                                           Font B:
Optional Asian Character Set:
12 x 24
9 x 17
24 x 24 Simplifi ed Chinese / Traditional Chinese / Japanese / Korean
Character Modification: Rotate 0°, 90°, 180°, 270° / Enlarge 1 ~ 6 Times
Paper-                                   Type:
                         Paper Thickness:
                                  Paper Width:
                       Outside Diameter:
                          Inside Diameter:
                                    Paper Out:
Continuous Paper / Marked Paper
0.06mm ~ 0.10mm
57.5mm ~82.5mm
5-7/8" (150mm) Maximum
1" (25.4mm) Maximum
Full Cut / Partial Cut (selectable)
Presenter: Not Applicable
Reliability - Printhead Life:
                             Cutter life:
                                     MTBF:
 >_ 100 Km
>_ 1,000,000 Cuts
> 370,000 Hours
Power Supply -        Input:
                                 Output:
110 ~ 240 VAC, 50/60 Hz
24 ± 10%V DC, 1.5A (Printing Duty 25%)
Temperature - Operating:
                               Storage
:
32° ~ 122°F (0° ~ 50°C)
-40° ~ 140°F (-40° ~ 60°C)
Humidity -        Operating:
                               Storage:
20% ~ 90% RH Non-Condensing
20% ~ 93% RH Non-Condensing
Dimensions: 13.15" W x 5.71" H x 4.41" D (334mm W x 145mm H x 112mm D)
Shipping Weight: Approx. 4.41 lbs. Without Paper Holder
