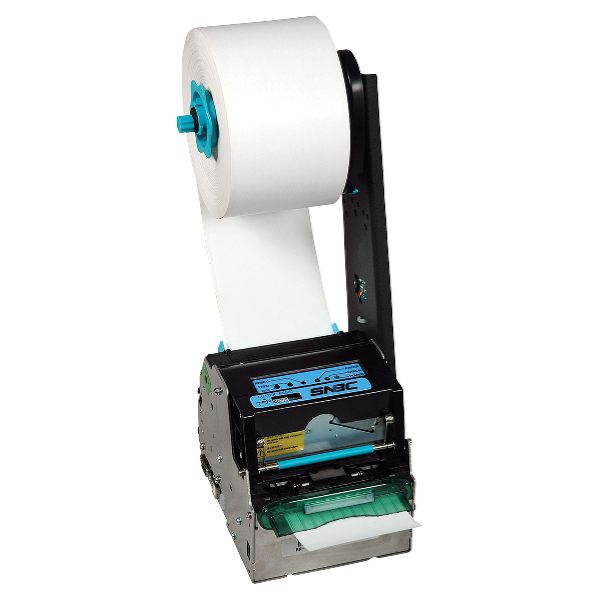

SNBC Kiosk Printer - BK-T680 - USB+Serial with 2 Sided Thermal

Thermal Kiosk Printer with Two-Sided Print Capability

Item #: 132335

SNBC Kiosk Printer - BK-T680 - USB+Serial  with 2 Sided Thermal
  • SNBC Kiosk Printer - BK-T680 - USB+Serial  with 2 Sided Thermal
  • SNBC Kiosk Printer - BK-T680 - USB+Serial  with 2 Sided Thermal

Options & Accessories

Product Number Description
Loading...

Product information

The extraordinary value high-speed BK-T680 1ST thermal kiosk printer includes advanced features and is specially suited for unattended printing applications. The BK-T680 2ST incorporates patented twosided print technology. Dual thermal print heads simultaneously print on both the front and back sides of a receipt. This new technology drives improvements in operational efficiency and enhances your ability to present customized, on demand messaging.



• Use up to 45% Less Paper (depending on receipt format and length)
• 2ST Printers Use 32% LESS Energy Than Single-Sided Printers
• 5%~25% Reduction in Net Paper Costs
• Increased Throughput and Productivity from Fewer Paper Roll Changes
• Consumer-Evident Tie-in to Retailers’ “Green” Initiatives
• Simple to Use and Easy to Maintain



Product Brochure

Specifications

Print Method: Direct Thermal Line Printing
Resolution: 203 DPI
Print Width: 3-1/8" (80mm) Maximum
Max. Print Speed: 5-7/8" (150mm) per Second Maximum
Print Length: 17-3/4" (450mm) Max. / 2-3/4" (70mm) Min.
Memory - Flash: 1MB Standard / 2MB or 4MB Factory Option
Memory - SDRAM: 2MB
Sesnsors: Paper Load / Black Mark / Paper End / Paper Near End /
Presenter / TPH Position / TPH Overheating Protection
Drivers -                       32 bit:
                                        64 bit:
Windows® 2000 / XP / 2003 / VISTA / Win 7
Windows® XP / 2003 / VISTA / Win 7
Interface: USB or USB+Serial

Bar Code -
                                             1D:


                                             2D:


UPC-A / UPC-E / EAN8 / EAN13 / CODABAR / ITF / Code 39 / Code 128 / Code 93

PDF417 / QR / MaxiCode / GS 1 Databar

Fonts-                            Font A:
                                        Font B:
12 x 24
9 x 17
Character Modification: Rotate 0°, 90°, 180°, 270° / Underline / Emphasize /
Reverse / Right-Side Up / Enlarge 1 ~ 6 Times
Paper-                                   Type:
                         Label Thickness:
                                  Label Width:
                       Outside Diameter:
                          Inside Diameter:
                                    Paper Out:
Continuous Paper / Marked Paper
0.06mm ~ 0.10mm
57.5mm ~ 82.5mm ± 0.5mm
7-3/16" (180mm) Maximum
3/4" (18mm) / 1" (25.4mm) / 1-9/16" (40mm)
Full Cut / Partial Cut (With Presenter Disabled)
Presenter -  Paper Out Speed:
          Paper Retraction Speed:
            Paper Presenter Mode:
15-3/4" (400mm) per Second
15-3/4” (400mm) per Second
Retract Paper / Hold Paper / Eject Paper (Selectable)
Reliability - Printhead Life:
                             Cutter life:
                                     MTBF:
 >_ 100 Km
>_ 1,500,000 Cuts
>_ 37,000,000 Lines
Power Supply -        Input:
                                 Output:
110 ~ 240 VAC, 50/60 Hz
24 ± 10%V DC, 1.9A (Printing Duty 25%)
Temperature - Operating:
                               Storage
:
40° ~ 114°F (5° ~ 45°C)
-40° ~ 140°F (-40° ~ 60°C)
Humidity -        Operating:
                               Storage:
20% ~ 90% RH Non-Condensing
20% ~ 93% RH Non-Condensing
Dimensions: 5-1/8" W x 4-13/16" H x 13-1/8" D (130mm W x 122mm H x 334mm D)
Shipping Weight: Approx. 4.87 lbs. (2.2 kg) Without Paper Holder
Safety and EMI: CE / CB / UL
RSPA USA Award RSPA Canada award RSPA Gold Award
