SNBC Printer BTP-R681 Black USB+Serial

Discontinued

All Front Access Thermal Receipt Printer

Item #: 132092

Parts only

SNBC Printer BTP R681 Black USB Serial
  • SNBC Printer BTP R681 Black USB Serial
  • SNBC Printer BTP R681 Black USB Serial
  • SNBC Printer BTP R681 Black USB Serial
  • SNBC Printer BTP R681 Black USB Serial

Options & Accessories

Product Number Description
Loading...

Product information

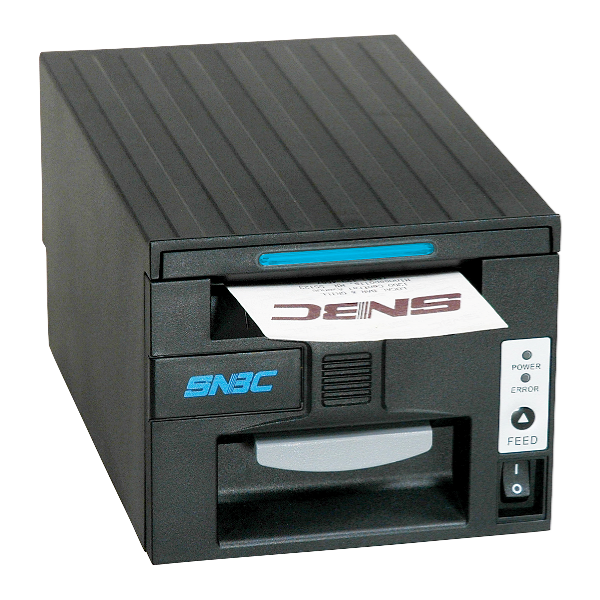

Ideal for Under-Counter Mounting! The SNBC BTP-R681 thermal receipt printer is perfect for QSR, hospitality, retail, kiosk or any application with limited counter space. The printer front easily slides open like a drawer to allow paper loading and simple printer maintenance. Whether above or under the counter, the SNBC BTP-R681 provides maximum reliability and protection from environmental hazards such as spill and dust.



• Front Paper Exit and Front Paper Loading
• Triple Interface Available – USB+Serial+Ethernet – USB is on the Main Board
• Serial, Parallel, Ethernet, USB, Serial+Ethernet and WiFi Interface Boards are Available
• Bright Light Indicates When a Receipt is Printing
• Blazing Fast 310mm/second Print Speed
• Highly Reliable: Rated for 70 Million Lines and 2 Million Cuts



Product Brochure

Specifications

Max Print Speed - Mono  80mm: 310mm per Second
Max Print Speed - Gray Scale: 150mm per Second
Max Print Speed - Two-Color: 120mm per Second
Printing Method: Direct Thermal
Resolution: 203 DPI x 180 DPI

Characters Per Line - Font A:
                                          Font B:

53 (80mm) / 38 (58mm)
71 (80mm) / 51 (58mm)
Characters Size - Font A:
                                  Font B:
12 x 24
9 x 17
Paper Roll Type - Width:
Maximum Diameter:
Paper Thickness:
56mm ~ 82.5mm
83mm
0.06 ~ 0.1mm Continuous / Marked Paper
Auto Paper Cutting Method: Auto-Cutter with Selectable Full or Partial Cut
Reliability - MTBF:
                     MCBF:
      Printhead Life:
             Cutter Life:
360,000 Hours
70,000,000 Lines
150,000,000 Characters
2,000,000 Cuts
Character Set - Alphanumeric:
International:
Graphic:
95
13
128 x 56 Page
Bar Code - 1D:
                    2D:
UPC-A / UPC-E / EAN8 / EAN13 / Code39 / Code93 / CODE128 / CODABAR / ITF
PDF417 / QR Code / MaxiCode / GS1
Interpreter: ESC/POS
Interface: USB+Serial+Ethernet / USB+Serial / USB+Parallel / USB+WiFi / USB+Bluetooth / USB
Drivers -                              32 bit:
                                             64 Bit:
                                32 and 64 bit:
                                              Other:
        Software Development Kit:
Windows XP Prof. / XP Home / 2000 Server / 2000 Professional / POSReady 7
Windows Server 2012 / Windows XP
Windows 10 / Windows 8 / Windows 7 / Server 2008 / Server 2003 / Vista
Linux / OPOS / BYJavaPOS Windows / BYJavaPOS Linux
iOS / Android
Drawer Port: Up to 2 Drawers (+24VDC) / Drawer Compulsion
Data Buffer - Rec. Buffer RAM:
RAM Bitmap:
Flash Bitmap:
64 KB
128KB
512KB
Power Supply: AC 100 ~ 240 V, 50/60 Hz Adapter Included
Current/Power Usage: 2.0A / 60W
Operating Temperature: 40° ~ 114°F (5° ~ 45°C)
Operating Humidity: 20% ~ 90% RH (Non-Condensing)
Dimensions - Closed:
                            Open:
5-5/16"W x 4-1/2"H x 8-1/2"D
5-5/16"W x 4-1/2"H x 14-3/8"D
Shipping Weight: 7 lbs. (Each Unit) / 30.10 lbs. (Master Carton of 4)
Safety and EMI: CCC / CE / CB / FCC / UL
Windows Driver:  32 and 64 bit Windows Driver- Win 10 Compatible
Printer Utility:   Printer Utility
