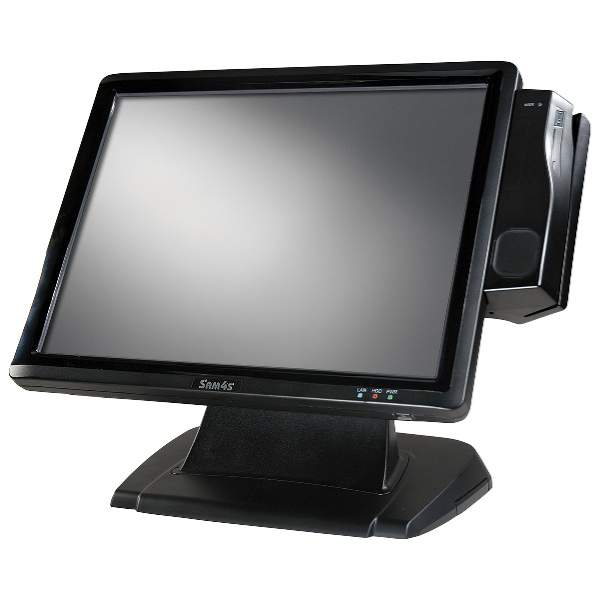

Terminal SPT-4700


 Fanless POS Touch Screen Terminal

Item #: 730055

Parts only

Terminal SPT 4700
  • Terminal SPT 4700
  • Terminal SPT 4700
  • Terminal SPT 4700
  • Terminal SPT 4700
  • Terminal SPT 4700
  • Terminal SPT 4700

Options & Accessories

Product Number Description

Product information

Powered With Intel Atom Dual-Core Processor to Run More Demanding Applications The high performance SAM4s SPT-4700 touch screen terminal with a dual-core fanless CPU is designed to reliably and effi ciently power demanding POS software applications in hospitality, quick service, grocery, and retail markets.

• 15" LCD with ELO® 5-Wire Resistive Touch
• Intel® Atom™ Dual Core 1.86GHz Fanless Processor
• 2GB RAM Standard; Expandable to 4GB
• Compatible with Popular Application Software
• Easily Wall Mountable
• Variety of Optional Integrated Customer Displays
• Excellent Cable Management


Processor:               Intel Atom D2550 1.86GHz (Cedarview) Fanless
Cores / Threads: Dual Core / 2 Threads
Cache Memory: 1MB
Bus Speed: 2.5 GT/s (GIga Transfers per Second)
Display LCD: Bezeled 15" LCD
Resolution: 1024 X 768
Brightness Adjustable up to 250 cd/m2
Integrated Speaker: Integrated 2 Watt Speaker
Chipset (PCH): NM10
Touch Panel: ELO 5-Wire Resistive Touch
MCR: Integrated USB Interface Triple Track MCR
Hard Drive: 2.5" with SATA Interface
RAM Memory:                                                        DDR3 800 SODIMM 2GB Expandable to 4GB (2 slots)
Video Memory:  Shared Memory up to 384MB
Compact Flash Disk:  Optional Compact Flash Card Slot

Serial Ports:



COM1COM2COM4 = DB9M with Pin 9 Voltage
(0V/+5V/+12V) Selectable By BIOS
COM3 = RJ45 Pin 1 Voltage (0V+5V/+12V) Selectable by Jumper

COM5= RJ45 for Touchscreen /  COM6 for VFD

Parallel Port:  One DB25F
USB Ports:  6 V2.0 (2 Left Side / 4 Bottom)
Cash Drawer Port:  RJ11, 12V DC  or 24V DC Selectable By Switch
(Maximum 2 Drawers – Supports Open/Close)
Keyboard Port: Not Applicable (Use USB Ports)
LAN Port: RJ45 10/100/1000 Base-T (Giga LAN) RealTek RTL8111DL
VGA Port:  One DB15F Display Port for Second LCD
(Maximum Resolution 2048 X 1536)
Audio Port:  One Line-In / One Line-Out
Mic Port:  One Mic-In
Power Supply: 60W, 12V/5A External Power Adaptor 100-240V 50-60Hz
Current / Power Usage: 0.37A / 45W
Operating Temperature:  32° F to 95° F (0° C to 35° C)
Compatible O/S: POSReady 2009 / POSReady 7 / Windows Pro Embedded 7 / Windows Pro 8 / Windows Embedded 8 Industry Pro
Dimensions –  Base:
       Shipping Carton:
11"W x 7-3/8"H x 8-5/8"D
13-13/16"W x 12-1/8"H x 8-5/8"D
20-1/4"W x 13"H x 16"D
Weight –     Product:
12.8 lbs.
17.5 lbs.
Safety and EMI:  FCC, RoHS
