Terminal SPT-7000

Discontinued

Space Saving Highly Integrated POS Terminal

Item #: 730035

Parts only

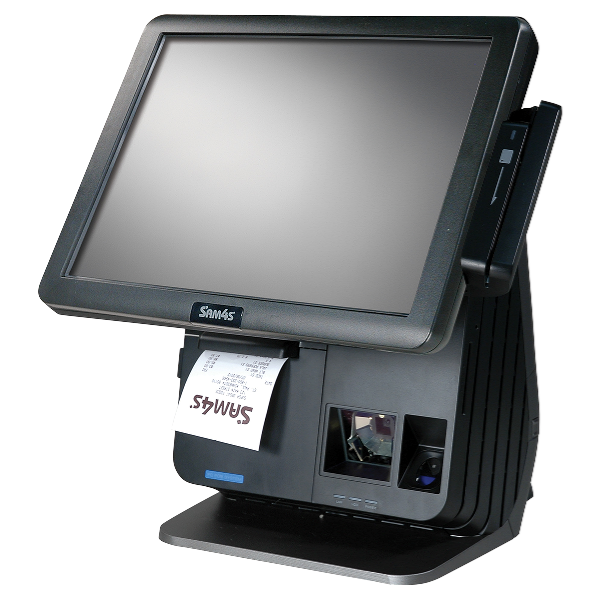

Terminal SPT 7000
  • Terminal SPT 7000
  • Terminal SPT 7000
  • Terminal SPT 7000
  • Terminal SPT 7000
  • Terminal SPT 7000
  • Terminal SPT 7000
  • Terminal SPT 7000

Options & Accessories

Product Number Description
Loading...

Product information

****  for MCR's *****
503089 MCR Track 1, 2 & 3 (Standard)
503089-MAGTEK MagTek Magnesafe MCR
(For Encryption - Specify Key Injection)
503089-MERCURY Mercury Encrypted MagTek Magnesafe MCR
503077 Scanner Only
503088+110760 Fingerprint Reader Only
503077+110760 Scanner + Fingerprint Reader Only





Ideal for POS Applications Where Counter Space is Limited The fully integrated SAM4s SPT-7000 POS terminal includes an integrated touch screen, card reader, power supply, thermal printer, and can be confi gured with an available integrated barcode scanner and fi ngerprint reader. With a footprint only 10½" wide by 12" deep the SPT-7000 is ideal for POS applications where counter space is at a premium such as ticket offi ces and concessions.

• 15" LCD with Resistive Touch
• Intel® Atom™ Dual Core 1.86GHz Processor
• Standard Integrated Thermal Receipt Printer and MCR
• Optional Integrated Scanner
• Optional Integrated Digital Persona® Fingerprint Reader
• Optional 2 Line by 20 Character VFD, 7", 9.7" or 15" LCD Integrated Customer Displays
• Optional WiFi Module • Integrated Power Supplies

Specifications

Processor:               Intel Atom D2550 1.86GHz (Cedarview) Fanless
Cores / Threads: Dual Core / 2 Threads
Cache Memory: 1MB
Bus Speed: 2.5 GT/s (GIga Transfers per Second)
Display LCD: Bezeled 15" LCD
Resolution: 1024 X 768
Brightness 250 cd/m2
Integrated Speaker: Integrated 2 Watt Speaker
Chipset (PCH): NM10
Touch Panel: ELO Resistive Touch
MCR: Integrated USB Interface Triple Track MCR
Hard Drive: 2.5" with SATA Interface - 2 Slots
RAM Memory:                                                        DDR3 800 SODIMM 2GB Expandable to 4GB (2 slots)
Video Memory:  Shared System Memory up to 384MB
Compact Flash Disk:  Optional SATA Adaptor

Serial Ports - 4 Extenal:




                        2 Internal:


COM1COM2COM4 = DB9M with Pin 9 Voltage
(0V/+5V/+12V) Selectable By BIOS
COM3 = RJ45 Pin 1 Voltage (0V+5V/+12V) Selectable by Jumper

COM5= RJ45 for Touchscreen /  COM6 for VFD

Parallel Port:  One DB25F
USB Ports:  6 V2.0 (2 Left Side / 4 Bottom)
Cash Drawer Port:  RJ11, 12V DC  or 24V DC Selectable By Jumper
(Maximum 2 Drawers – Supports Open/Close)
Keyboard Port: Not Applicable (Use USB Ports)
LAN Port: RJ45 10/100/1000 Base-T (Giga LAN) RealTek RTL8111DL
VGA Port:  One DB15F Display Port for Second LCD
(Maximum Resolution 1024 X 768)
Audio Port:  One Line-In / One Line-Out
Mic Port:  One Mic-In
Power Supply - Terminal:
                                Printer:
75W, 12V/6.25A 100-240V 50-60Hz Integrated Power Adaptor
60W 24V/2.5A 100-240V 50-60Hz Integrated Power Adaptor
Current / Power Usage: 0.37A / 45W
Operating Temperature:  32° F to 104° F
Compatible O/S: POSReady 2009 / POSReady 7 / Windows Pro Embedded 7 / Windows Pro 8
Footprint: 10-1/2"W x 12"D
Dimensions: 14"W x 16-7/16"H x 12-3/16"D
Weight – Shipping: 30 lbs. (Including Standard Printer and Card Reader)
Safety and EMI:  FCC, CE, RoHS
