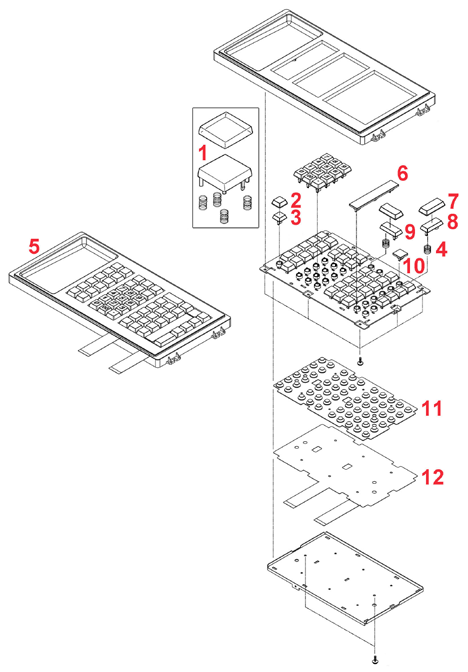

Parts_ER_5215M_keyboard
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 300149 | 2 X 2 KEYCAP/TOP SET N/S | ||
| 2 | 300152 | 1 X 1 KEYCAP N/S | ||
| 3 | 300153 | 1 X 1 KEYTOP N/S | ||
| 4 | 300154 | SPRING RETURN N/S | ||
| 5 | 500995 | KEYBOARD ASSY 5215M N/S | ||
| 6 | 300151 | 5 X 1 BLANK COVER N/S | ||
| 7 | 300155 | 1 X 2 KEYCAP N/S | ||
| 8 | 300156 | 1 X 2 KEYTOP VERTICAL N/S | ||
| 9 | 300157 | 1 X 2 KEYTOP HORIZONTAL N/S | ||
| 10 | 300150 | 1 X 1 BLANK COVER N/S | ||
| 11 | 300159 | CONTACT RUBBER 60 KEY N/S | ||
| 12 | 549115 | MEMBRANE 3715/4715/4915 | ||
This diagram applies to the following products:
