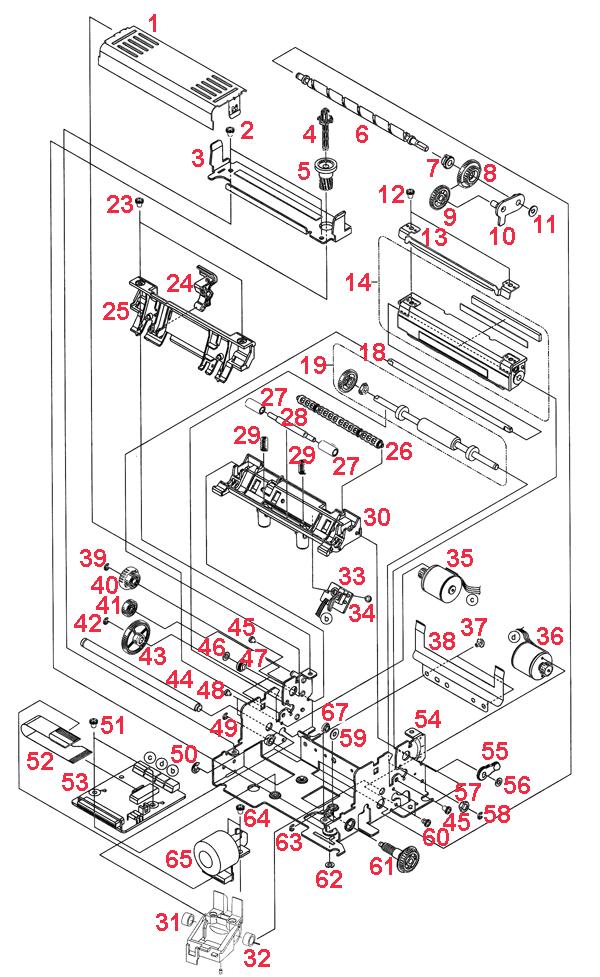

Parts_SDM_310
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 1 | 431000 | COVER HEAD - SDM-310 | ||
| 4 | 431002 | LATCH RIBBON - SDM-310 | ||
| 5 | 431003 | WORM WHEEL - SDM-310 | ||
| 6 | 431004 | LEAD SCREW - SDM-310 | ||
| 7 | 431005 | BUSHING CAM - SDM-310 | ||
| 8 | 431006 | GEAR SCREW - SDM-310 | ||
| 9 | 431007 | GEAR IDLE 33 - SDM-310 | ||
| 10 | 431008 | SWING PLATE - SDM-310 | ||
| 11 | 431009 | POLY WASHER - SDM-310 | ||
| 13 | 431010 | CUTTER PAPER - SDM-310 | ||
| 14 | 431011 | PLATEN PLATE ASSY - SDM-310 | ||
| 19 | 431016 | ROLLER FEED ASSY - SDM-310 | ||
| 24 | 431020 | PARTITION PAPER - SDM-310 | ||
| 25 | 431021 | COVER, UPPER - SDM-310 | ||
| 26 | 431022 | ROLLER GUIDE - SDM-310 | ||
| 27 | 431023 | ROLLER PRESSURE - SDM-310 | ||
| 30 | 431026 | GUIDE BOTTOM - SDM-310 | ||
| 31 | 431027 | HEAD CARRIAGE ASSY - SDM-310 | ||
| 33 | 431029 | PBA SUB P-END - SDM-310 | ||
| 35 | 431030 | MOTOR STEP FEED - SDM-310 | ||
| 36 | 431031 | MOTOR STEP CR - SDM-310 | ||
| 38 | 431032 | PAPER GUIDE - SDM-310 | ||
| 40 | 431033 | GEAR KNOB - SDM-310 | ||
| 41 | 431034 | GEAR IDLE 27 - SDM-310 | ||
| 43 | 431035 | GEAR REDUCTION - SDM-310 | ||
| 44 | 431036 | SHAFT HEAD - SDM-310 | ||
| 52 | 431038 | FPC CABLE - SDM-310 | ||
| 53 | 431039 | MAIN PCB - SDM-310 | ||
| 61 | 431042 | WORM GEAR - SDM-310 | ||
| 62 | 431043 | POLY WASHER SDM-310 | ||
| 65 | 431044 | DOT PRINT HEAD - SDM-310 | ||
