Parts_SPT_4500

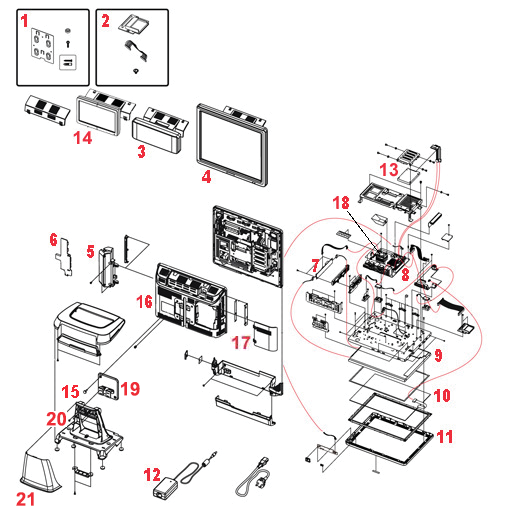

| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 2 | 503052 | Board, CF Slot SPT-4500 | ||
| 3 | 503050 | VFD Display for SPT-4500/47xx | ||
| 5 | 110755 | MCR Track 1,2,&3 | ||
| 5A | 110756 | MCR+FP 123 SPMT15 SPT4500/4700 | ||
| 8 | 503056 | Logic Board SPT-4500 | ||
| 9 | 503145 | LCD Panel AUO also need cable 503274 | ||
| 10 | 503028 | Touch Panel | ||
| 11 | 503057 | Case, Display Front | ||
| 12 | 503055 | Power Supply SPT-4500 | ||
| 15 | 600914 | Screw (1) SPT-4500/4700 Base | ||
| 16 | 503193 | Cover, Rear SPT-4740 | ||
| 17 | 503227 | Cover, Rear HDD SPT-4740 | ||
| 18 | 205343 | Fan, CPU SPT-4500 | ||
| 19 | 503185 | Base Holder Hinge SAP/SPTSPT-4500/4700/4845/4740/SAP | ||
| 20 | 503186 | Screw for Hinge SAP/SPT** For use with 503185 ** | ||
| 21 | 503183 | Cover, Stand SPT-4xxx No Logo | ||
| Not pictured | 503274 | Harness, LED Backlit SPT-4500 | ||
| 503066 | Base Assy SPT-4500/4700 | |||
| 503114 | Cover, MSR SPT-4500/4700 | |||
| 503115 | Cover, SPT Finger Print Reader SPT-4500,4700,7000,7500 | |||
| 503117 | Cable Harness, SATA SPT-4500 | |||
| 503120 | Cable, LVDS SPT-4500 | |||
| 503185 | Base Holder Hinge SAP/SPTSPT-4500/4700/4845/4740/SAP | |||
| 503186 | Screw for Hinge SAP/SPT** For use with 503185 ** | |||
| 503198 | Harness, OSD SPT-4500 | |||
| 503201 | Board, OSD SPT-4500 | |||
| 503231 | Label, Fan Duct SPT-4500 CPR Shroud | |||
| Replacement Battery | 203070 | BATTERY 3V LITHUM CR2032 | ||
Discontinued Product. Select Replacement Part for Stock availability.
This diagram applies to the following products:
- TERMINAL SPT-4500 WEPOS 2G (730014)
- TERMINAL SPT-4500 XPPRO 2G (730015)
- Terminal SPT-4500 XP Pro 2G (730015-SHOW)
- TERMINAL SPT-4500 POSR2009 2G (730016)
- Terminal SPT-4500 POSR2009 (730016-SHOW)
- Terminal SPT-4500 (730017)
- TERMINAL SPT-4500 WINDOWS 7 2G (730018)
- Terminal SPT-4500 Windows 7 2G (730018-SHOW)
- TERMINAL SPT-4500 POSR7 2G (730019)
- TERMINAL SPT-4500 NCC REFLECT (730020)
- Terminal SPT-4500 NCC Reflect (730020-SHOW)
- TERMINAL SPT-4500 NCC REF WIN (730021)
- Terminal SPT-4500 NCC Ref Win (730021-B)
- Terminal SPT-4500 NCC Ref Win (730021-SHOW)
