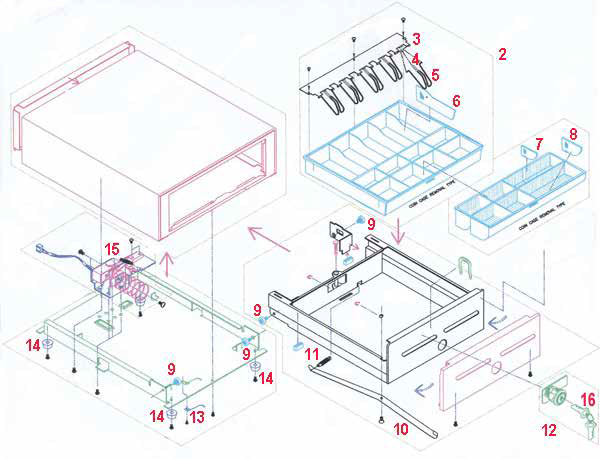

Parts_CD_Model_23
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 2 | 100218 | INSERT TRAY MODEL 23/31/41 | ||
| 3 | 100607 | BILL METAL BRACKET - MODEL 23 | ||
| 4 | 100556 | SPRING FOR LEVER 83/93 | ||
| 5 | 100555 | BILL LEVER FOR 83/93 | ||
| 6 | 100604 | BILL SEPARATOR EC460B-MODEL 23 | ||
| 7 | 100606 | COIN SEPARATOR SMALL - MDL 23 | ||
| 8 | 100605 | COIN SEPARATOR BIG - MODEL 23 | ||
| 9 | 100055 | DRAWER ROLLER M55 D22MM S1MM | ||
| 10 | 100600 | OPEN ARM EC460B - MODEL 23 | ||
| 11 | 100601 | SPRING FOR OPEN ARM - MODEL 23 | ||
| 12 | 100603 | LOCK ASSY MDL 23/31/41/93/93-W | ||
| 13 | 100611 | GROUND SPRING EC460B- MODEL 23 | ||
| 15 | 100613 | SOLENOID ASSY 24V 23/83/93 POS | ||
| 100549 | Not Illus.-KEYS 2 MDL 93/23/6/41/23 #235 | |||
| 100612 | RUBBER FEET EC460B | |||
This diagram applies to the following products:
