Parts_Epson_M_U420
| Ref. No. | CRS Item No. | Description | ||
|---|---|---|---|---|
| 104 | 442011 | MAIN MOTOR ASSY M-U420 | ||
| 105 | 442001 | GEAR, MAIN MOTOR M-U420 | ||
| 111 | 442007 | SHAFT, RIBBON DRIVE ASY M-U420 | ||
| 115 | 442016 | GEAR TRANS FRME SUB ASY M-U420 | ||
| 116 | 442017 | GEAR TRAN PAPER TAKE-UP M-U420 | ||
| 117 | 442018 | TAKE-UP TRANS FLANGE M-U420 | ||
| 118 | 442019 | GEAR, PAPER FEED TRANS M-U420 | ||
| 119 | 400880 | PAPER ROLLING BELT | ||
| 120 | 442020 | GEAR, DECEL CARRIAGE M-U420 | ||
| 121 | 442013 | GEAR, TRANSMISSION M-U420 | ||
| 122 | 442021 | GEAR, DECELERATION M-U420 | ||
| 123 | 442022 | GEAR, TRANS CARRIAGE M-U420 | ||
| 124 | 442023 | GEAR, RIBBON DEC M-U420 | ||
| 126 | 442012 | GEAR, TIMING DETECTION M-U420 | ||
| 131 | 442024 | MAIN BOARD ASSY M-U420 | ||
| 132 | 442005 | FPC for PRINT HEAD M-U420 | ||
| 134 | 442025 | CARRIAGE ASSY M-U420 | ||
| 142 | 442002 | PRINT HEAD AB M-U420 | ||
| 143 | 442028 | V DETECTOR ASSY M-U420 | ||
| 516 | 442003 | TIMING CAR DRVE BLT ASY M-U420 | ||
| 517 | 442037 | CARRIAGE DRIVEN PULLEY M-U420 | ||
| 518 | 442038 | PULLEY FLANGE M-U420 | ||
| 521 | 442009 | PPR FEED TRGR RPT COIL M-U420 | ||
| 522 | 442010 | PPR FEED TRGR JNL COIL M-U420 | ||
| 523 | 442040 | STAMP DRIVE COIL M-U420 | ||
| 526 | 442042 | PLATEN ASSY M-U420 | ||
| 527 | 442008 | SHAFT, PAPER FEED ASSY M-U420 | ||
| 528 | 442043 | SHAFT, PAPER EXT ASSY M-U420 | ||
| 529 | 442044 | SHAFT, PAPER FEED PRES M-U420 | ||
| 530 | 442045 | PAPER GUIDE PLATE M-U420 | ||
| 531 | 442046 | PAPER HOLD ROLLER M-U420 | ||
| 533 | 442047 | SPRING, PAPER GUIDE PLT M-U420 | ||
| 534 | 442014 | PAPER GUIDE UPPER M-U420 | ||
| 538 | 442049 | PAPER GUIDE EXIT M-U420 | ||
| 541 | 600033 | RETAINING RING RE 04 | ||
| 544 | 442053 | GEAR, PAPER FEED M-U420 | ||
| 716 | 600029 | RETAINING RING RE 2 | ||
| 907 | 442068 | PAPER ROLLING SHAFT M-U420 | ||

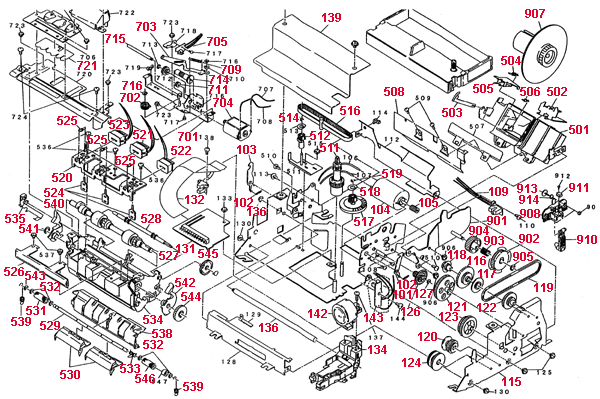

This diagram applies to the following products:
